PP, PVC and PE Plastic Mesh Extruding Machine

Snow offers plastic mesh extrusion line for extruding soft and hard thermoplastics, such as PVC, PP, PE and polyethylene materials. It can be used with relevant auxiliary machine (including shaping machine head)to produce several kinds of plastic products, for example: pvc mesh, film, pipe, rod, plate, thread, cable insulating layer, hollow product. We offer extruder machine with dies and screws as well as fittings. The extrusion line has rotational dies heads and single screw extruders.

Choose Screw Extruders According to Technical Information:

SN series single and double screw extruder is composed of screw and barrel, a power transmission system, heating, cooling and electrical control. Mainly used in PE, PP, ABS, PS, PET mesh products.

Extrusion Line with Double Screws PP PE Extruded Plastic Netting Making Machine

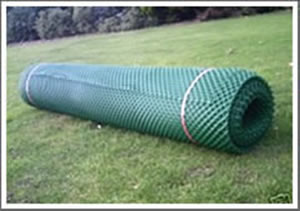

Dimond Plastic Mesh for Safety Fencing Barriers Turf Reinforcement Extruded Plastic Mattress Grid
Diamond Hole Extruded Mesh, Snow Fence Green Extruded Plastic Mesh Products for Grass Protection

Plastic Mesh Extrusion Equipment Line

◊ DESCRIPITION
This production Line uses for producing plastic rigid flat net, treat HDPE, LDPE, PP as main material and anti-anti-static, anti-aging agent are added. Poultry breeding net, mattress net with various forms and specs can be extruded with definite tensile intensity, aging-resistant, corrosionresistant performance.

◊ USEAGE
It's widely use for those item, such as: golf-course, park, horticulture, airport, highway as the ground treatment.

PROCESS FLOW
Material mixing---- Loading---- Heating and extruding----Molding---- Cooling----Cutting---Flating---- Haul off ----Winding---- Finished.

Main Technical Parameter

   Model

SPW-1500

SPW-2000

SPW-2500

SPW-3000

SPW-4000

   Material

PP, PE

PE , PP

PE, PP

PE, PP

PE, PP

Screw Diameter mm

65

65

80

90

120

   Die Head

   Rotational die head

Total Power   KW

35

46

62

78

98

   Dimension    M

9.2×2.8×3.5

11×3.2×3.8

12×3.7×4.2

16×3.8×4.6

18×5.2×5.6

Weight       T

3.2

4.2

5.6

7.8

8.8
