Three Dimensional Plastic Net Grid Mattress for Parking Zone Turf Management

Extruded plastic mesh is tough and durable, suitable for making three dimensional reinforcement mesh in style of mats. This specially designed mattresses are used for reinforcing of turf and grasses. Three dimension vegetation net is a new-typed seed planting material with tridimensional structure, which can protect the ground surface being corroded before the turf is growing up, and fix the seeds. The compound protection layer formed after the grass grows up can endure washing by high level and high speed water. It can be a substitute of the concrete, bitumen, stone etc to be the slope protection material. Plastic geomat is used in turf areas of parking zone, taxi driveway, highway, railway, riverway, embankment, hillside etc.

Choose Turf Reinforcing PVC Grid Mats According to Technical Requirements and Applications:

General Technical Information
Mat thickness:10-18mm
Tensile:0.8KN/m-3.2KN/m
Layers:EM2/3/4/5
color:Green,Black,white,etc.
Weight:220-480g/m2
Colour: green black brown
Reinforcement mat roll size:2*50m 2*30m

The compound protection layer formed after the grass grows up can endure washing by high level and high speed water. Plastic reinforcement mesh mat can be a substitute of the concrete, bitumen, stone etc to be the slope protection material. It has mainly been used in highway, railway, riverway, embankment, hillside etc.

Specifications of Plastic Mats:

Art No. PLC0201 PLC0202 PLC0203 PLC0204
Item and Type EM2 EM3 EM4 EM5
Unit Weight≥(g/ m 2 ) 220 260 350 430
Thickness≥(mm) 10 12 14 16
Tensile Strength≥(kN/m) 0.8 1.4 2.0 3.2
Width(m) 2.0

Extruded Plastic Netting for Reinforcing
Black Color Plastic Mesh for Turf Reinforcing, Geomat fabric protecting the ground surface being corroded before the turf growing up, and fixing the seeds.

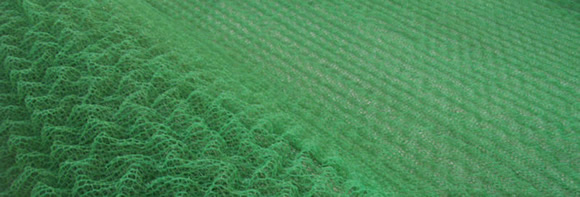

Tridimensional Turf Reinforcing Mesh Mats for Seeds Fixing
The turf reinforcement mesh stabilizes the grass and enables the grass to intertwine with the plastic mesh filaments creating a strong stable reinforced grassed surface.

When installing turf reinforcement mesh, it is essential that the mesh should be laid down to give enough time for the grass roots to intertwine with the plastic mesh filaments. This usually takes approximately one growing season. The protected area will soon resume its natural appearance with the turf reinforcement mesh disappearing below the surface of the grass providing a stable surface that will withstand the weight of vehicles and heavy pedestrian use. The grass protection mattress mesh is available in black & green in a standard grade, and black in a heavy duty grade.

Applications: Turf reinforcement plastic mesh is ideal for overflow car-parks, grassed areas, taxi ways and other sites.

Colors: Green, Black

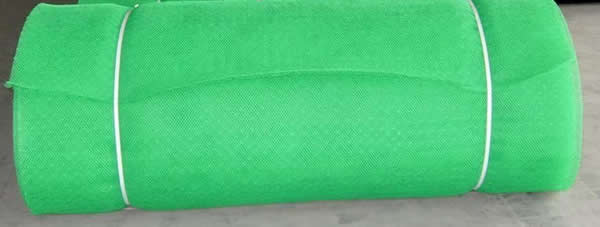

Plastic Flat Mesh for Taxi Ways Turf Ground Protection

Extruded flat plastic mesh for the protection and reinforcement of grass and turf, is ideal for pedestrian and light vehicle use, overflow car parks, and airport taxi-ways.
